Welcome to Peter Balazsy's 6V6 & 5902 Amplifier Section
Peter@Pbpix.com ~ ~ ~ Tel. (973) 790-7960
Push-Pull AMP-1

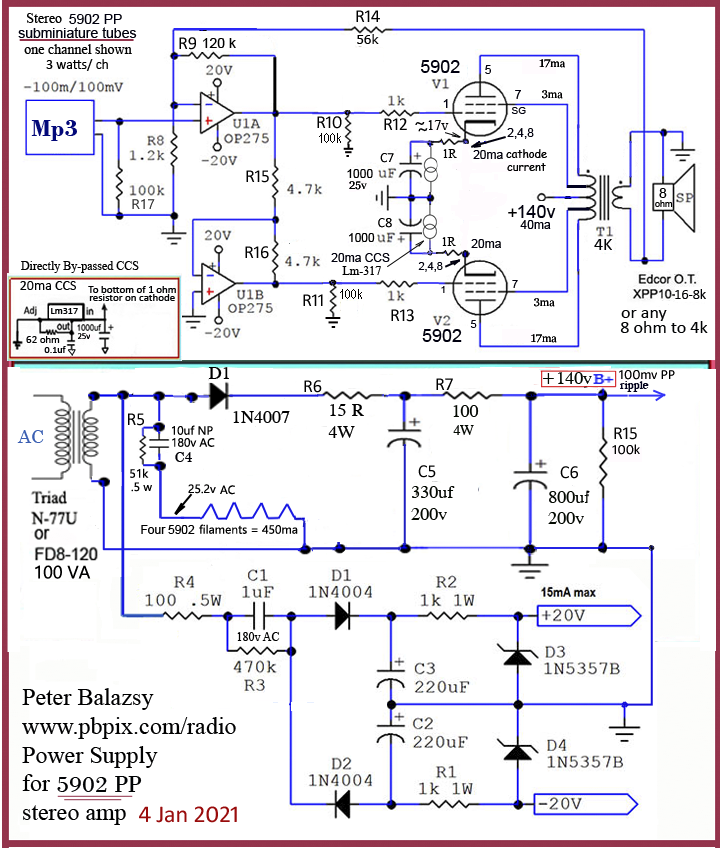

LATEST=>>> 5902 Ver-2 PP integrated amp schematic CCS Bias

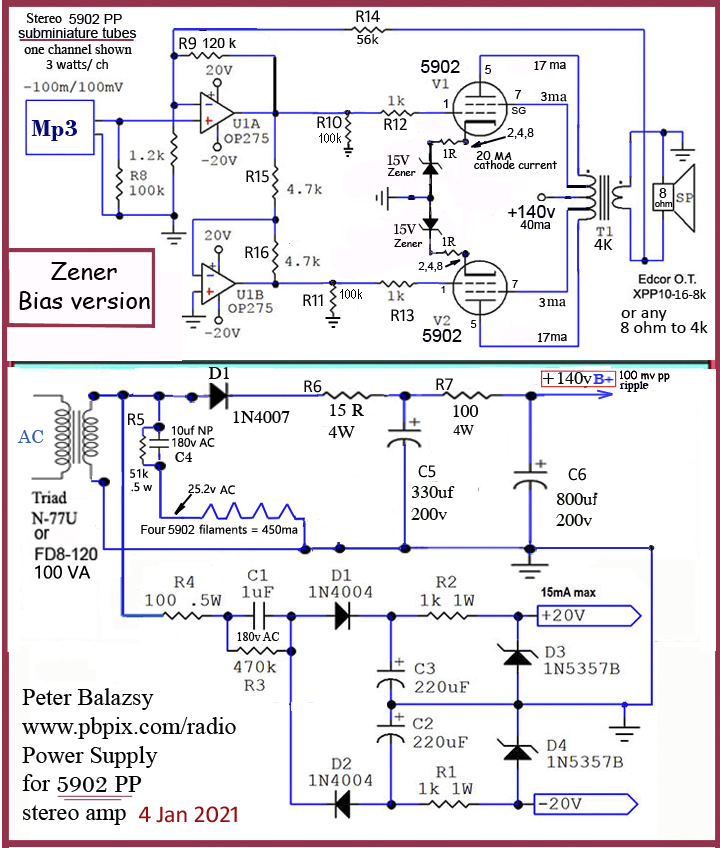

5902 Ver-3 PP integrated amp schematic w/zener bias

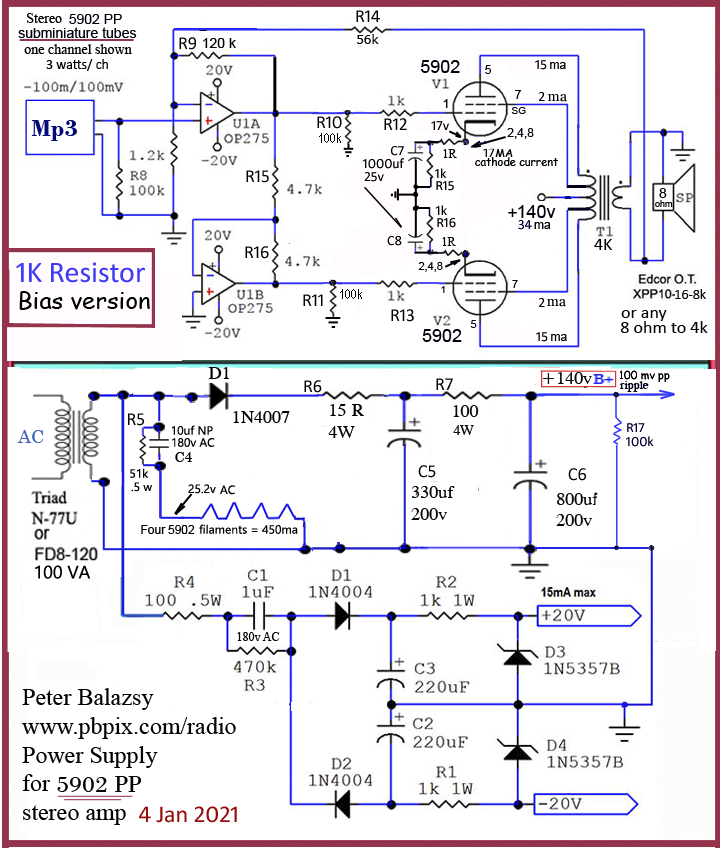

5902 Ver-4 PP integrated amp schematic w/RESISTOR bias

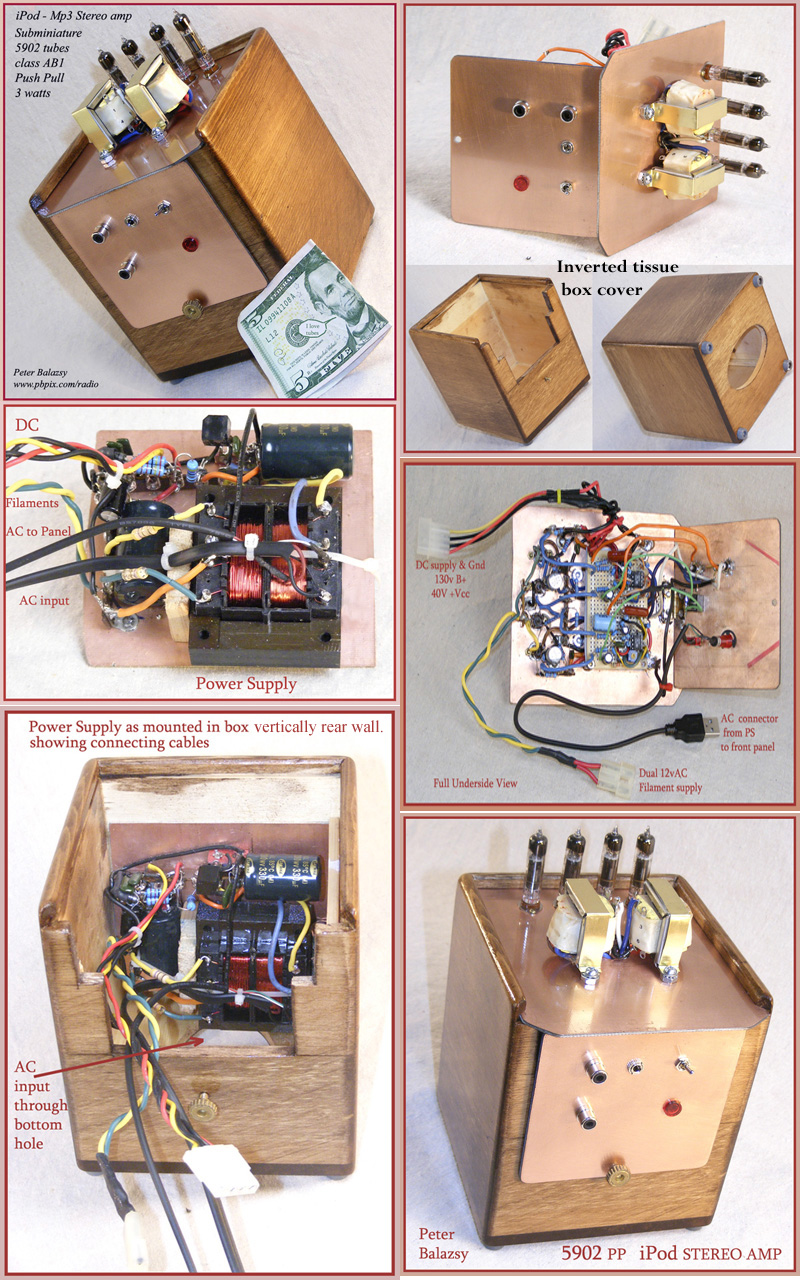

5902 build Ver-1
5902 build Ver-2
Push-Pull AMP-2

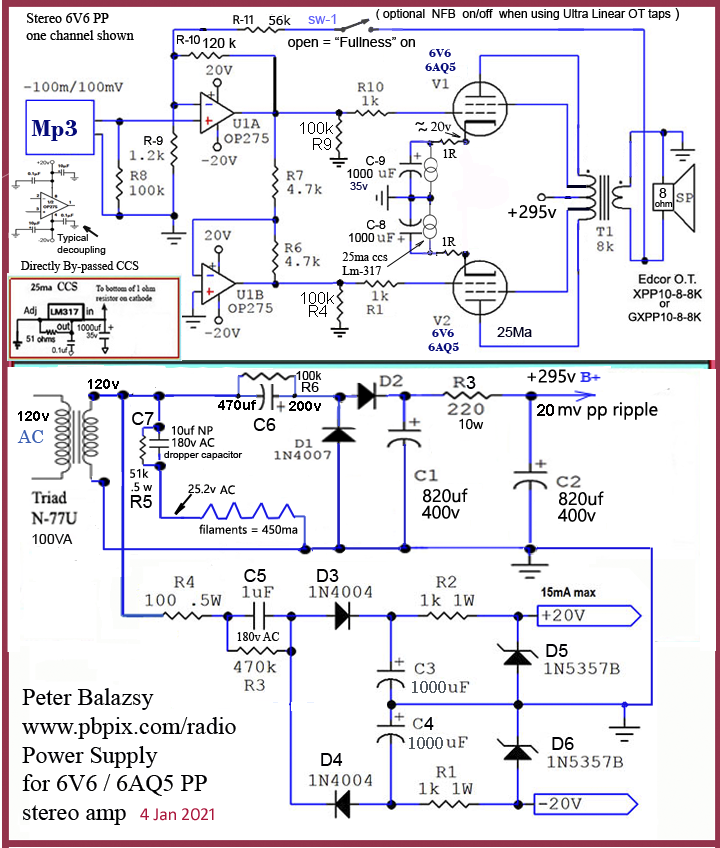

LATEST=>>> 6V6 / 6AQ5 PP integrated amp schematic W/Power supply change hw - VER-2

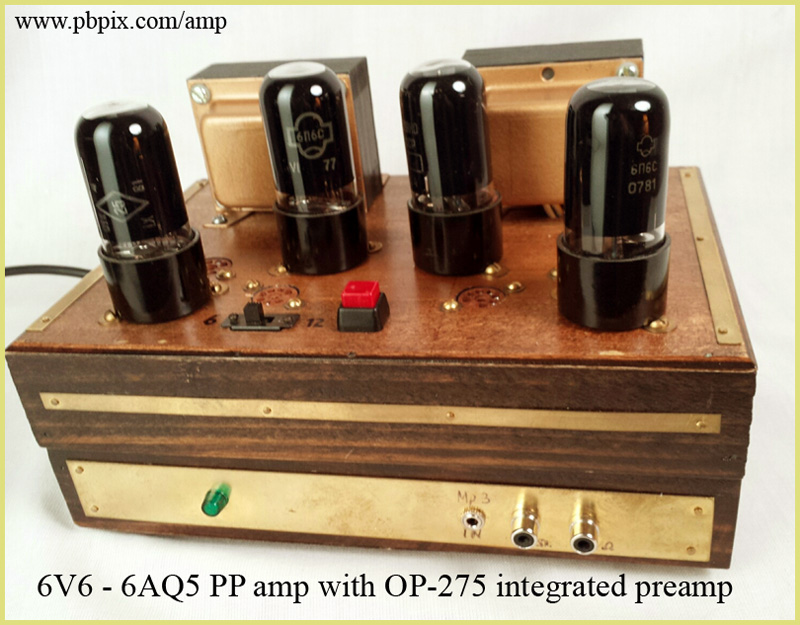

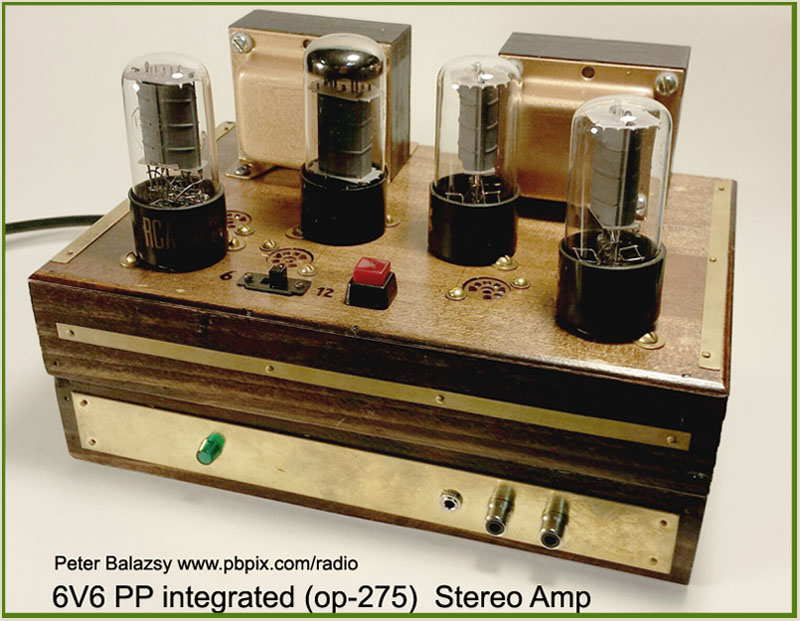

6V6 build
6V6 build view 2

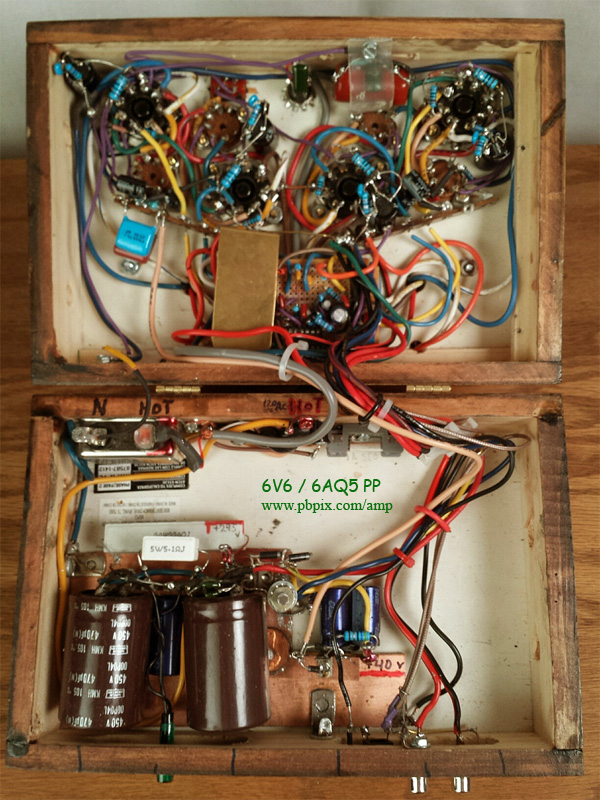

6V6 chassis layout internal view

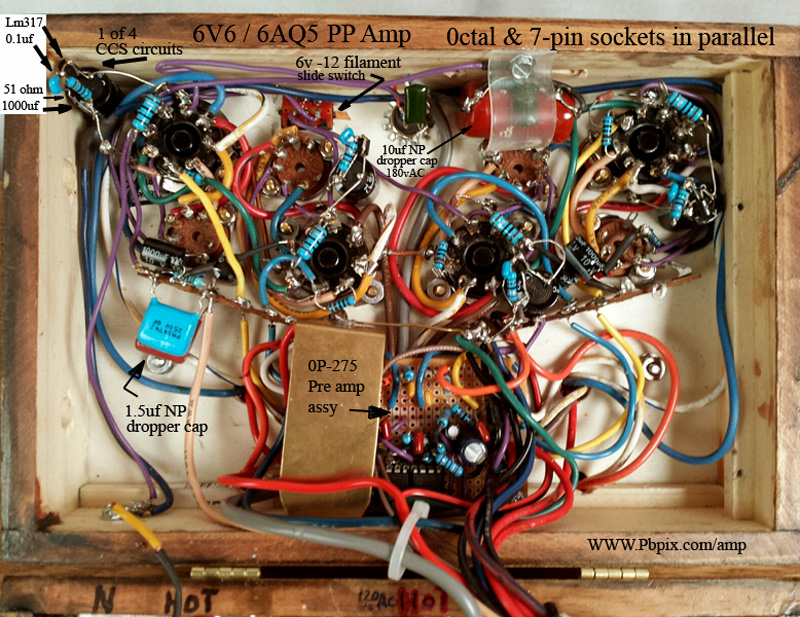

6V6-6aq5 build detail

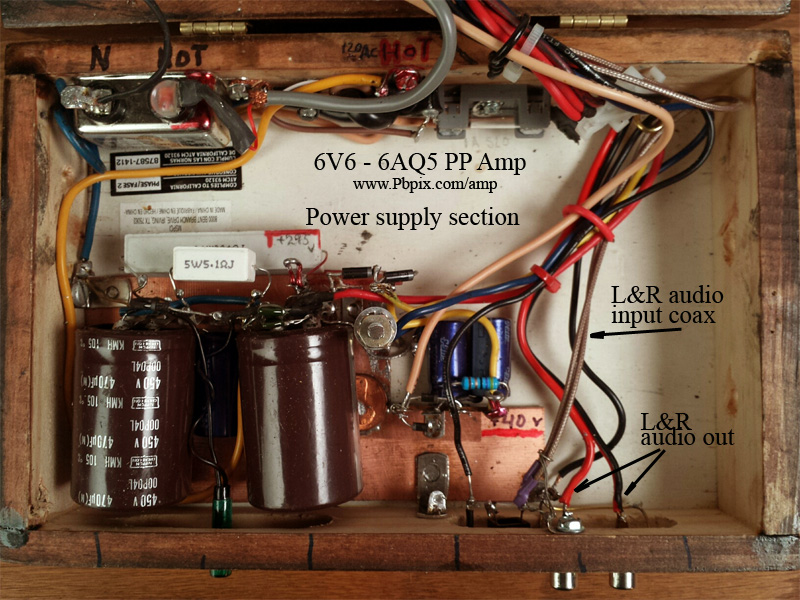

6V6-6aq5 Power Supply Build detail

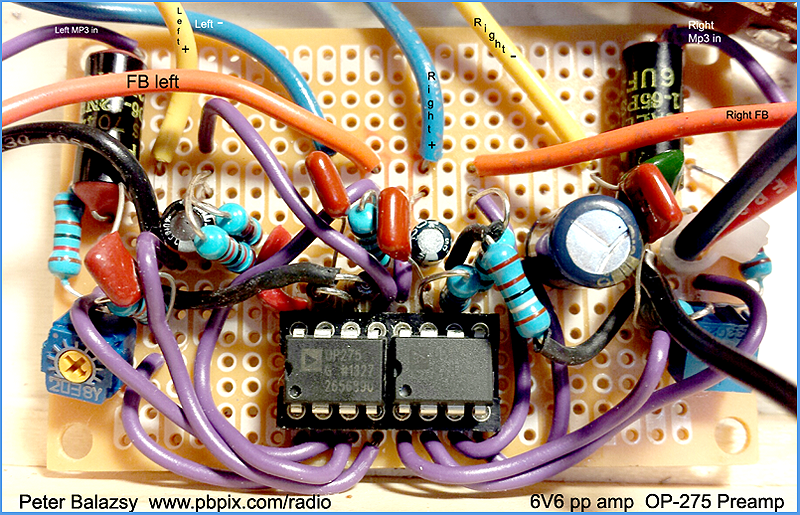

6V6-6aq5 OP-275 Preamp layout detail

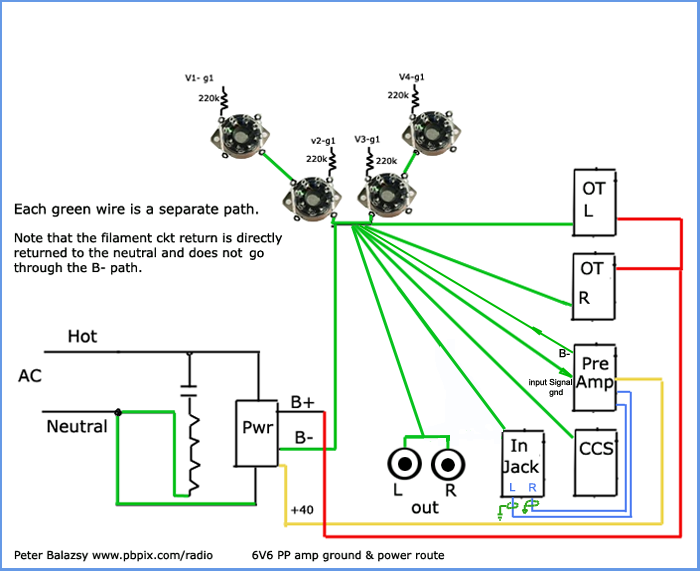

6V6-6aq5 Power Wiring Layout

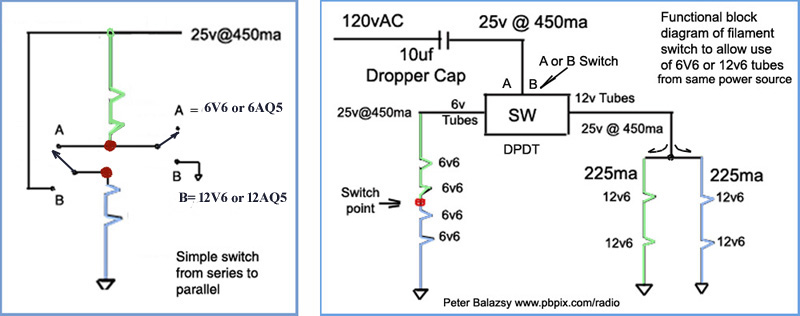

Optional 6-12 volt switch detail
Single Ended AMP-3

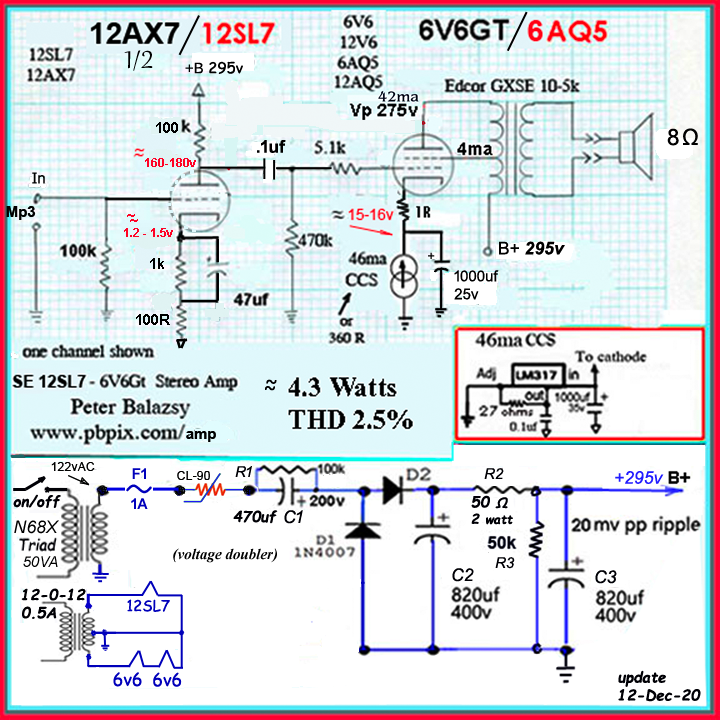

SE 12SL7 - 6V6 Stereo Amp schematic W/Power supply

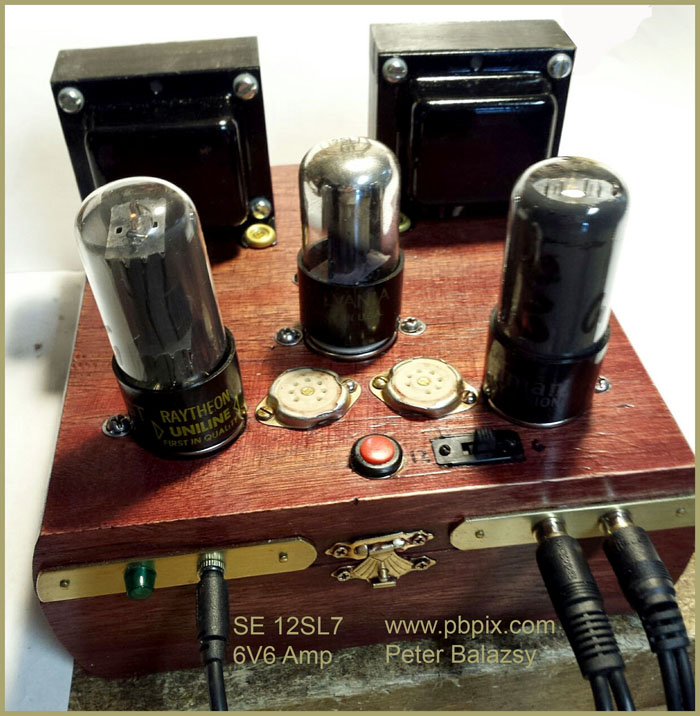

Single Ended 12SL7 - 6V6 build

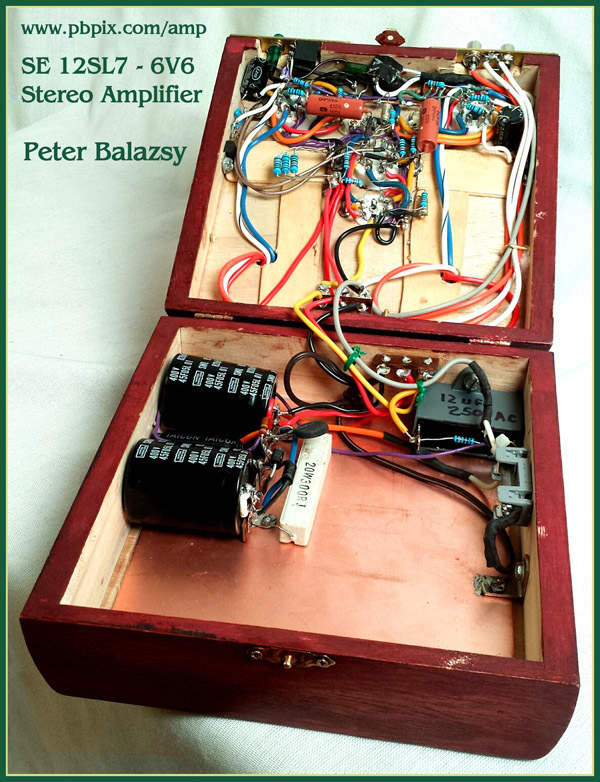

Single Ended 12SL7 - 6V6 inside-build

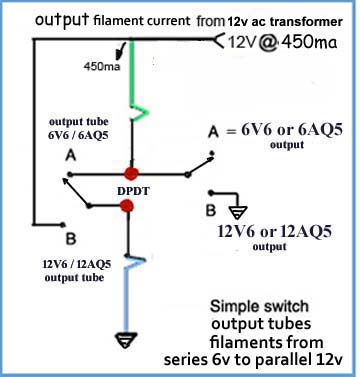

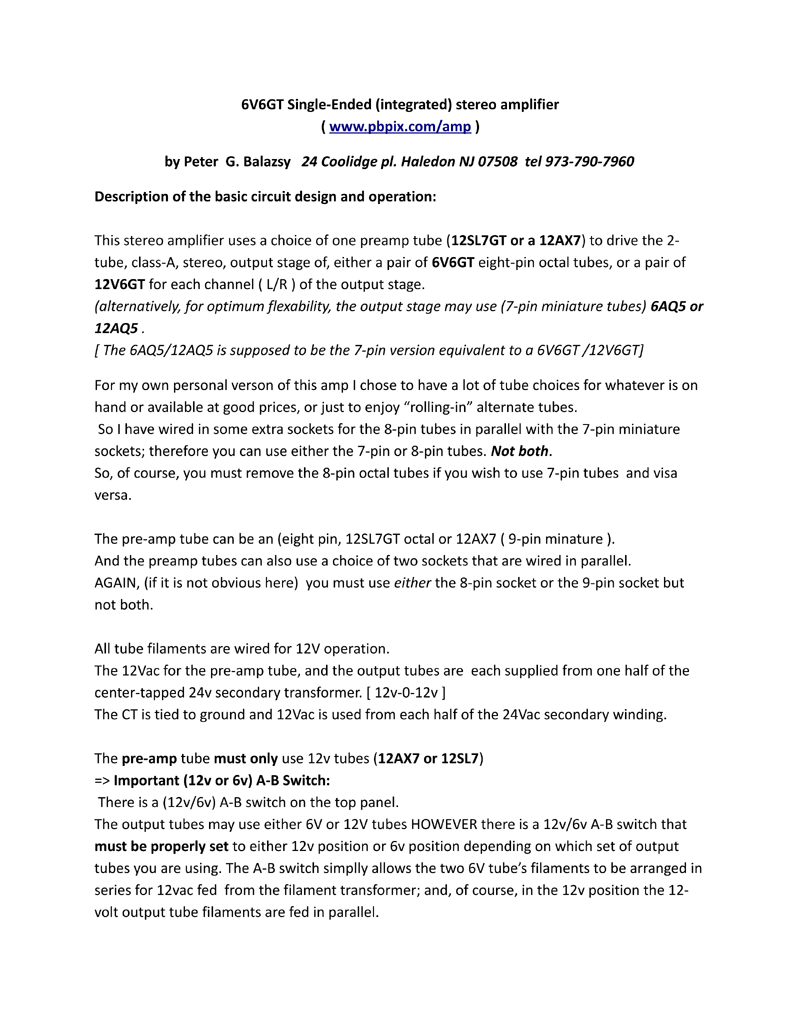

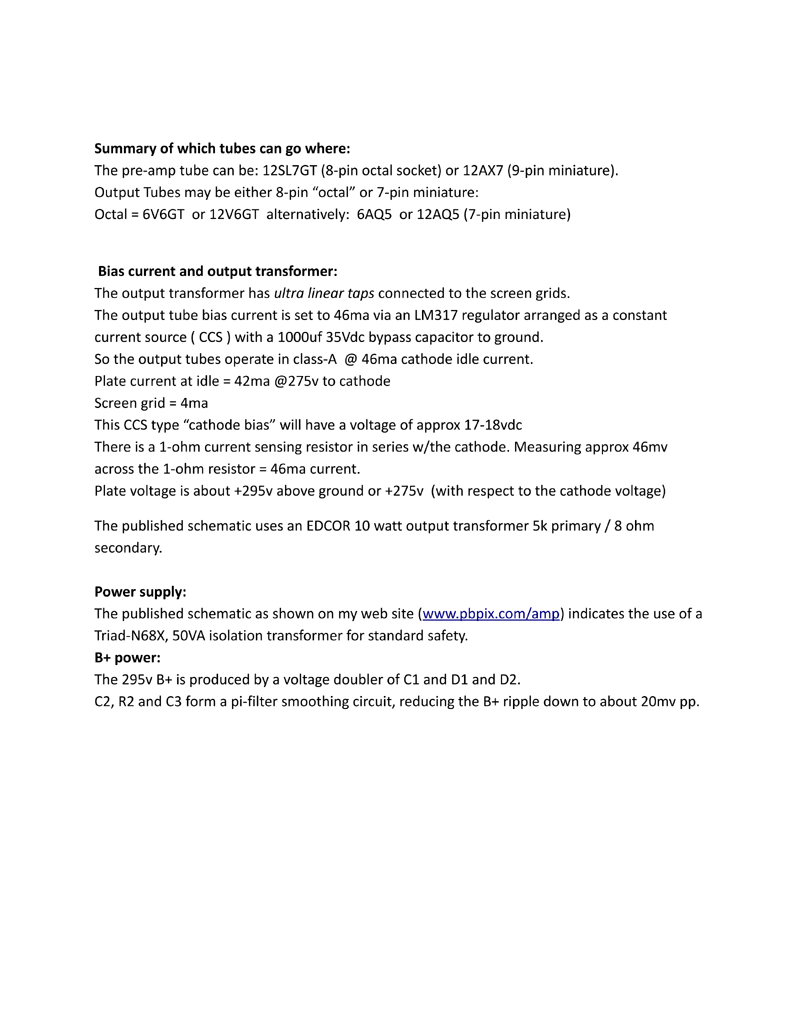

Circuit Description pg1 Circuit Description pg2 SE 6V6 amp 6-12 switch
|
